VMS-1911 - 斑馬膠帶
VMS-1911 是一種斑馬反射帶，設計用於放置在旋轉軸上並由激光光學傳感器感應。膠帶的正麵由塑料塗層保護。膠帶的背麵包含一層粘合劑，在 70 °C 以上的溫度下會硬化，使膠帶非常耐用。該膠帶可以在 -40°C 至 130°C 的溫度範圍內運行，而不會發生任何顯著變化。
膠帶的寬度設計是為了滿足渦輪機操作員的特殊安裝要求，即轉子放置的通行量、軸傳感器間距和檢測精度。典型的應用主要是扭轉振動測量和扭矩測量。Zebra 膠帶旨在加快係統安裝速度並提高係統的完整性。
VMS-1911 與 VMS 光學傳感器兼容，例如 VMS-1503 和 VMS-1903
VMS-1911 斑馬膠帶技術參數：
| 項目 | 參數 |
| 反光條紋長度 | 1 厘米 |
| 不反光條紋的長度 | 1 厘米 |
| 總長度 | 3米 |
| 寬度 | 2 厘米 |

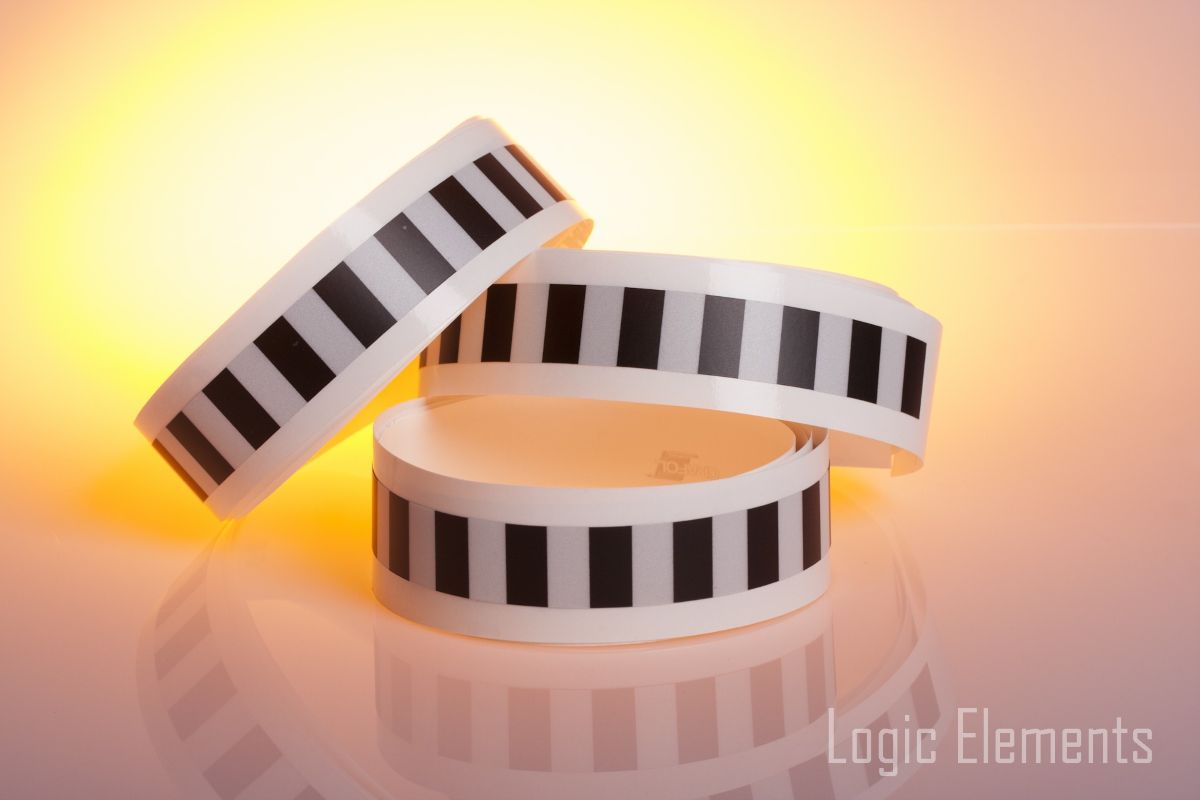

VMS-1911 zebra reflection tape
The VMS-1911 is the zebra reflection tape that is designed to be placed on the rotating shaft and sensed by the laser optical sensor. The front face of the tape is protected by plastic coating. The back side of the tape contains an adhesive layer that hardens at temperatures above 70 °C that makes the tape very resistant. The tape can be operated in temperature range from -40°C to 130°C without any significant changes.
The width of the tape was designed to fullfill special installation demands by the turbine operator, which is a rotor placing tollerance, shaft sensor spacing and detection accuracy. Typical applications are mostly the torsional vibration measurement, and Torque measurement. The Zebra tape was designed to speed-up system installation and to get better integrity of the system.
VMS-1911 is compatible with all VMS optical sensors such as VMS-1503 and VMS-1903.
