Bactiscan Plus實時生物膜檢測儀
一次性垃圾桶 2 分鍾 不帶 Bactiscan 的一次性垃圾桶 2 分鍾
好處
即時視覺檢測;
生物膜
細菌
酵母菌和黴菌
產品殘留物
安全 - 無需護目鏡
無耗材
無創檢測，無停機時間
快速輕鬆地檢測大麵積
優化 ATP 拭子，更有針對性和效率
技術
BactiScanPLus 采用獨特的 4 頻紫外線交替係統，使細菌和生物膜發出綠色光芒。獨特的 4 頻紫外光可立即使細菌旁結晶蛋白 S 層和生物膜發出熒光。隻需將 BactiscanPlus 指向您要檢查的區域，即可快速照亮大麵積區域，並消除在何處進行 ATP 拭子測試所涉及的猜測。
規格
旋轉頭可檢查難以觸及的空間
雙可充電電池，可繼續使用
2 小時的電池續航時間，
1.5 小時電池充電
IP54 等級
4 個 LED UV 波長，使用壽命為 6000 小時
由領先的獨立食品行業科學組織 Campden BRI 獨立驗證，對 Bactiscan 進行調查以檢測一係列細菌，包括;
李斯特 菌
革蘭陰性球菌
沙門氏菌
大腸杆菌， 假單胞菌
革蘭氏陽性腐敗菌
乳酸菌、酵母菌和孢子形成芽孢杆菌。
他們將 Bactiscan 與使用標準 UV 手電筒進行了比較。他們得出結論;
Bactiscan 在檢測單個物種生物膜方麵表現佳，生物膜均被強烈檢測到。使用 Bactiscan 時，生物膜的存在在視覺上很明顯，因為定義了綠鬆石色/淺綠色熒光區域，而其他儀器返回的藍色熒光更加漫射，這更難與反射光/其他碎片區分開來。Bactiscan 還能夠拾取較弱的生物膜，並且在弱的生物膜形成者的情況下，能夠拾取小而強烈的藍色/綠色熒光斑點，在更仔細的顯微鏡檢查中，它揭示了小麵積生物膜生長/微菌落的存在。
細菌或生物膜的存在在視覺上很明顯，使用 Bactiscan 在表麵上呈現綠鬆石色/綠色熒光。在 Campden BRI 微生物學工藝車間內，對生物膜是否存在的測定表明，與其他選定的紫外線炬管相比，它在定位汙染區域方麵非常有效。
可以得出結論，Bactiscan 能夠檢測來自許多工業領域（包括食品、醫療和獸醫領域）的多種環境中存在的病原體和其他目標微生物的典型物種的生物膜。
Bactiscan Plus REAL TIME BIOFILM DETECTION

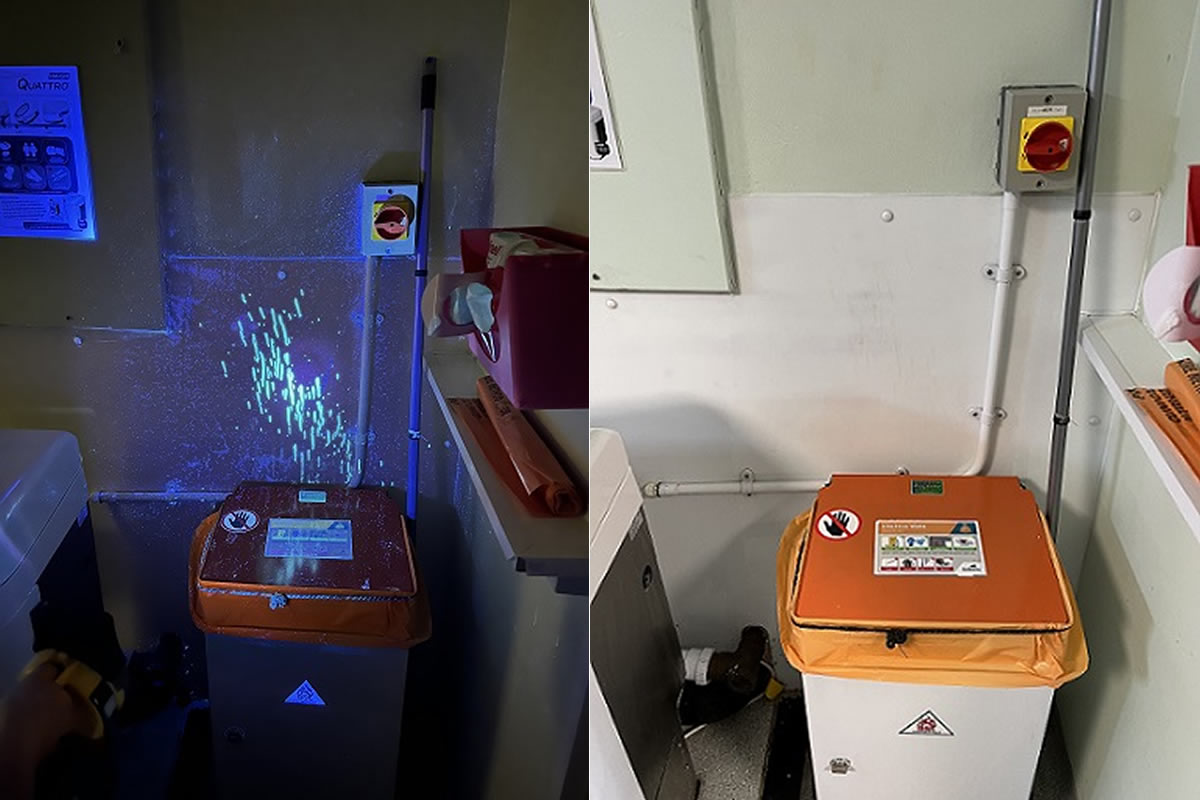

Hospital disposable bin 2 min Hospital disposable bin without Bactiscan 2min
Benefits
Immediate visual detection of;
Biofilms
Bacteria,
Yeast & Moulds
Product Residues
Safe - No need for eye protection
No consumables
Non-invasive testing with no downtime
Inspect large surface areas quickly and easily
Optimises ATP swabs, more targeted and efficient
The Technology
BactiScanPLus employs a unique a 4 frequency UV wave-alternating system, causing bacteria and biofilms to glow a green colour. The unique 4 frequency UV lights fluoresces the bacterial paracrystalline protein S-layers and biofilms instantly. Simply point BactiscanPlus at the area you want to inspect, allowing the illumination of large areas fast and removing the guesswork involved in where to conduct your ATP swab tests.
Specifications

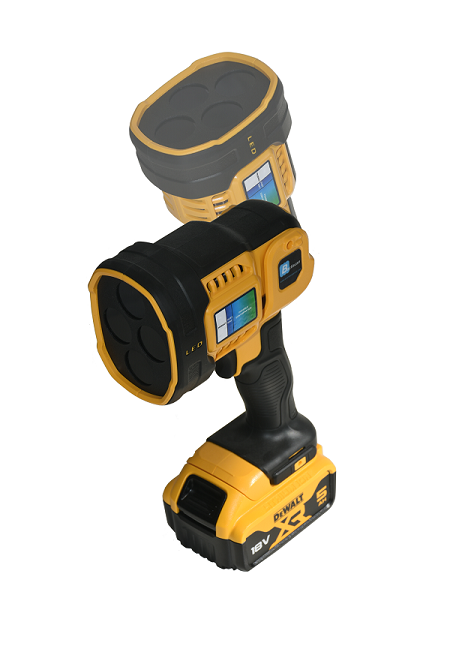

Swivel Head to inspect difficult to reach spaces
Dual rechargeable batteries for continue use
2 hours of battery life,
1.5 hr battery recharge
IP54 Rating
4 x LED UV wavelengths with 6000 hour life span
Independently verified by Campden BRI, a leading independent food industry scientific organisation, investigate Bactiscan to detect a range of bacteria including;
Listeria
Gram negative cocci
Salmonella
E. coli, Pseudomonads
Gram positive spoilage organisms
Lactic acid bacteria, yeasts and spore forming Bacillus.
They compared the Bactiscan with using a standard UV torch. They conclude;
The Bactiscan performed the best at detection of single species biofilms, with all biofilms detected strongly. The presence of biofilms was visually evident as defined areas of turquoise/light green fluorescence when using the Bactiscan, whereas the other instruments returned a more diffuse blue fluorescence, which was more difficult to distinguish from reflected light/other debris. The Bactiscan was also able to pick up weaker biofilms, and in the case of the weakest biofilm formers, was able to pick up small intense specks of blue/green fluorescence, which on closer microscopic inspection revealed the presence of small areas of biofilm growth/microcolonies.
The presence of bacteria or biofilms are visually evident as a turquoise/green fluorescence on the surfaces using the Bactiscan. Determination of the presence of biofilm in practice within the Campden BRI microbiology process hall showed it to be highly effective at locating areas of contamination compared against other selected UV torches.
It can be concluded that the Bactiscan is able to detect biofilms from species typical of pathogens and other target microorganisms present in a multitude of environments from across many industry areas including food, medical and veterinary areas.
