UVA,UVB,UVC紫外輻照試驗箱BS-02

UVA,UVB,UVC紫外輻照試驗箱BS-02shiyigeyongziwaihuokejianguangjunyundizhaosheyangbendejincoudejiangudeshebei

，keyirenweikongzhiziwaihuokejianguangdezhaosheshijianhuojiliang。zhegezhaoshexiangkeyiwanquandulianzhuang8個15瓦的紫外燈管以達到大照射量。這些燈管的光譜範圍可以是UVA、UVB、UVC或日光（D65 標準太陽光源），其中兩組不同光譜範圍的燈可以結合起來用，並且任何一組都可以獨立地關閉，從而保證特別靈活的照射選擇。

內部的樣本基座為46×32cm


，高20cm。燈管和感應器在儀器的背部
，可以容易被替換。樣本溫度大約使25℃到30℃ ，可以有效避免樣本的熱傷害。因為輻照的高度一致
，所以樣本可以以任何順序擺放。

可選的照射劑量控製器UV-MAT （見單獨的產品說明書）可以單獨控製兩種不同的光譜範圍。

照射劑量控製器UV-MAT與符合PTB標準的高質量傳感器（見照度計紫外和可見光傳感器技術資料）結合可以控製照射劑量，而不管燈的老化
、汙染或溫度。劑量是用校準過的傳感器測量的。我們的傳感器已經具有較高精度的模數轉化器和溫度傳感器。

傳感器的儲存裏包含的傳感器的認證以及校準記錄。

UV-MAT可以被PC控製。這允許了多階段的輻照以及輻照記錄。

UVA,UVB,UVC紫外輻照試驗箱BS-02應用領域

-細菌或細胞培養物的照射

-光穩定性測驗

-UV和可見光材料測驗

-原型設計以及3D打印的後處理

-UV固化、密封
、粘接

-UVC老化和

UVA,UVB,UVC紫外輻照試驗箱BS-02技術指標

內部大小       46×32×20cm

外部大小　　　　 58×40×47cm

重量          約32kg

電力消耗       180W

電源          110 - 230VAC
，50/60Hz

工作溫度       10-40℃

濕度           ＜80% 非冷凝

燈管壽命       大10000小時

燈的數量       8

樣本溫度       25℃+/- 5℃

光譜範圍       1個標準的
，2-4個可選

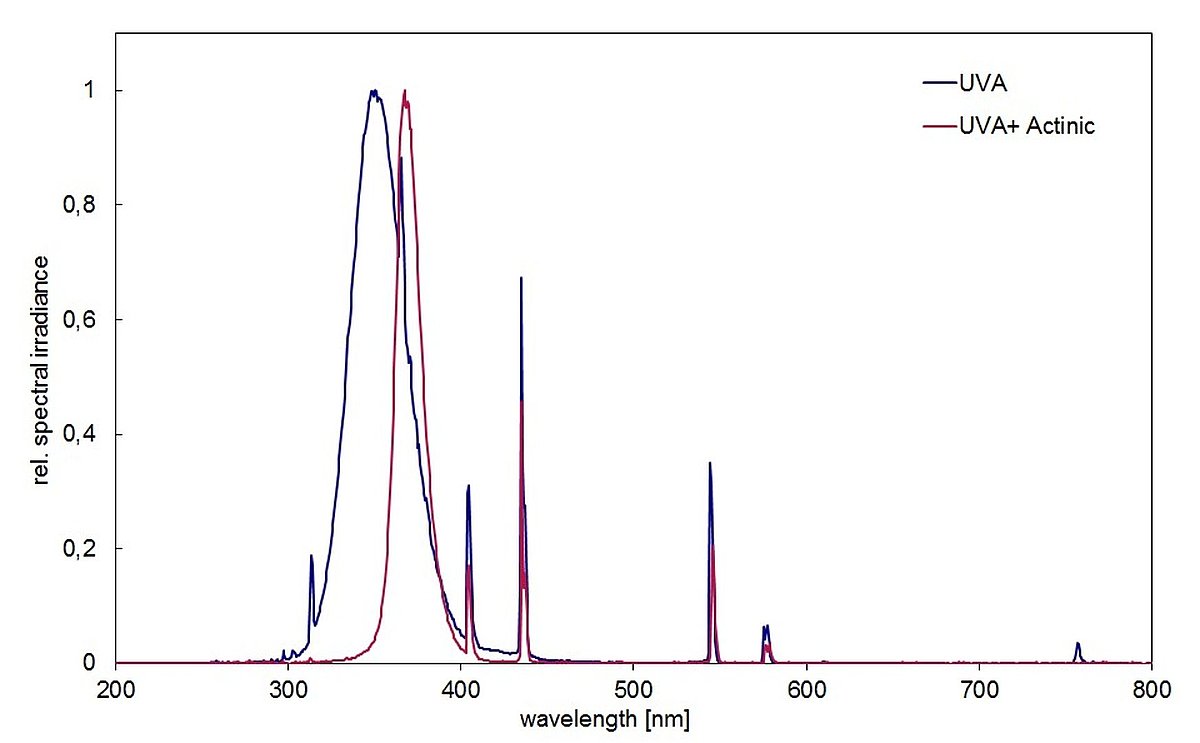

UVA照度  　   8mW/cm2

UVA+照度  　  8 mW/cm2

UVB照度  　   5 mW/cm2

UVC照度       10 mW/cm2

D65照度       25000 lux

以上照度指大值

UV-MAT技術指標

測量範圍       0-200mW/cm2

劑量範圍       0-10,000,00 J/cm2

劑量精度       1 mJ/cm2

模擬-數字轉換   24bit

傳感器連接器    2，全數字化

PC 界麵        USB 2.0

傳感器識別     有

顯示          圖形，128 x 64 px

光譜範圍       UVC,UVB,UVA,或LUX

尺寸          185mmx 251mm x 100mm

運行溫度       0 – 40℃

貨號

照射箱BS-02        860902

遠程控製，USB      806900

照度傳感器         8144XX

ISO 17025 校準      17025

燈/備用燈          8608XX

惰性盒UVA/UVA     86802-iA/-iC

燈的衰減器          870000

區域衰減器          870001

UV irradiation chamber BS-02

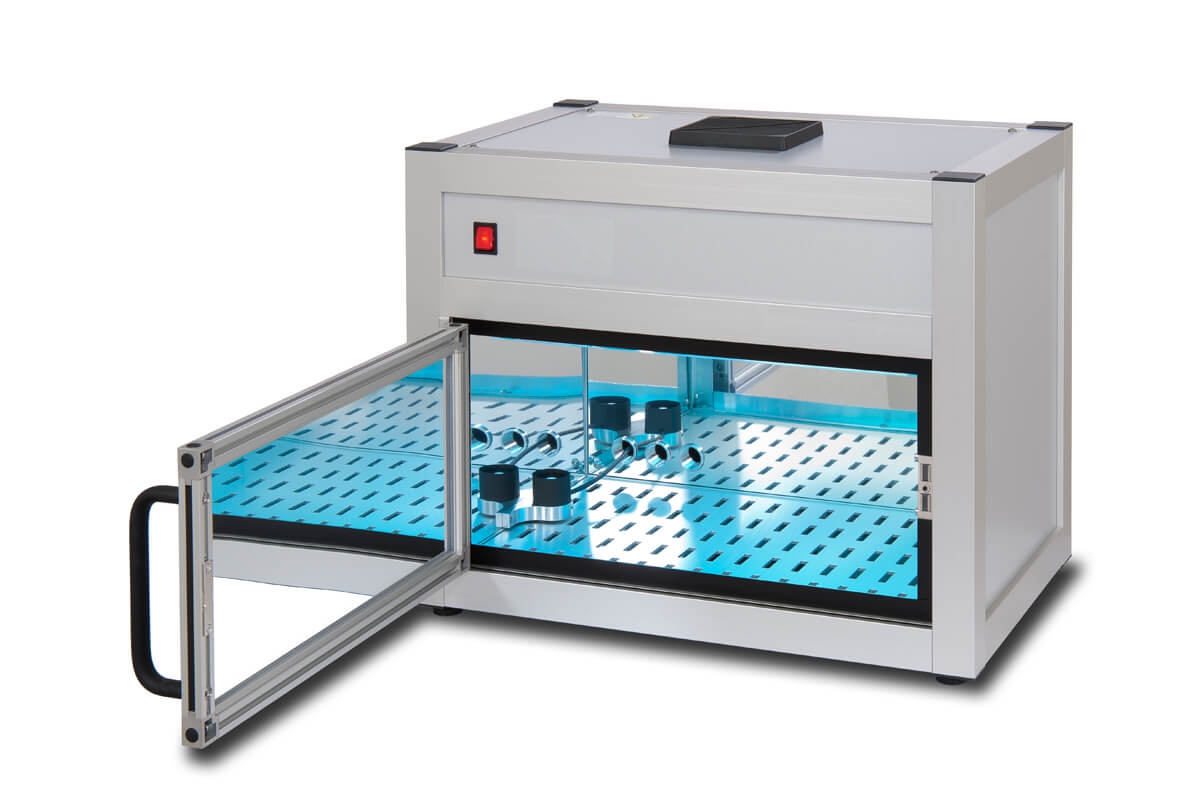

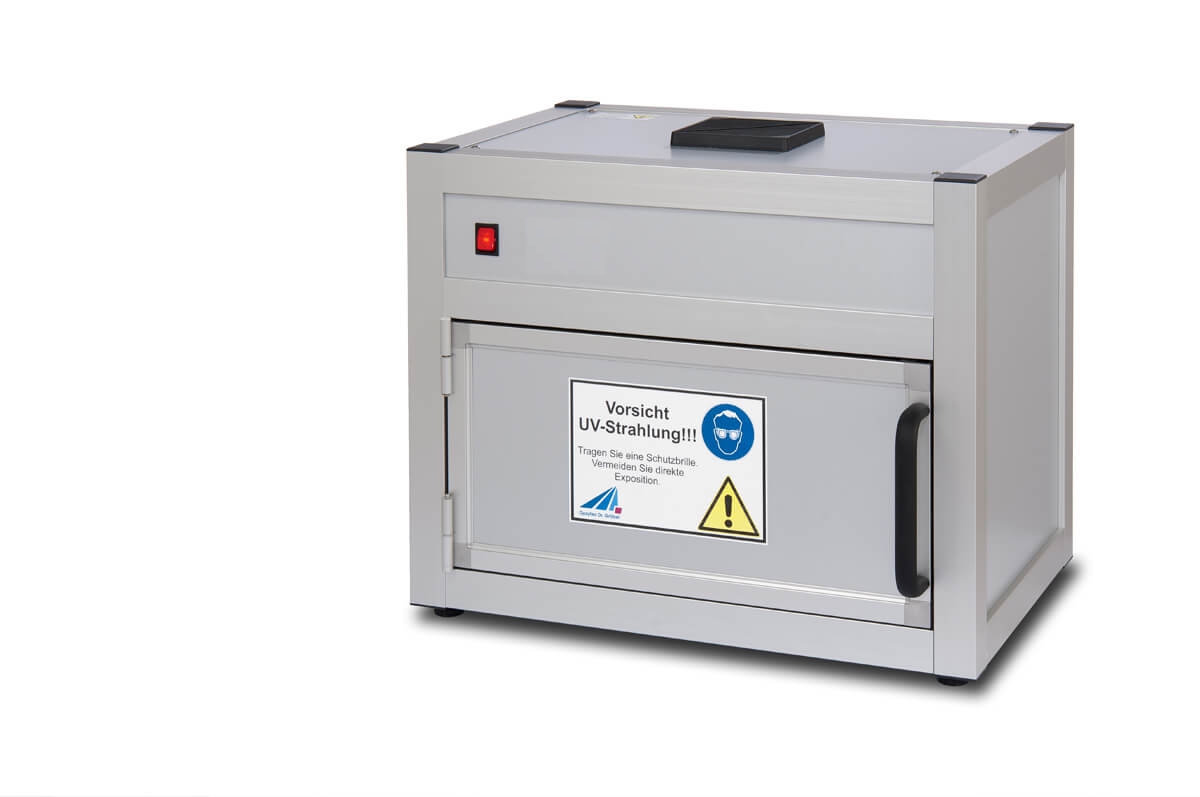

The irradiation chamber BS-02 is compact, robust equipment for the time- or dose-controlled irradiation of samples with UV radiation. The chamber can be fully equipped for one of the spectral regions UV-C, UV-B, or UV-A to achieve the highest irradiance. Alternately, the use of two separately controlled lamp groups for different spectral regions allows for especially flexible operation of the chamber. With interchangeable lamps, the BS-02 is really flexible. No tools are required for lamp replacement.

The interior irradiation chamber has a base area of 49 x 32 cm² and a height of 23 cm. The sample chamber operating temperature is about 25°C - 30°C so that thermal damage to the specimen is avoided. Due to the high uniformity of the irradiation, the samples may be positioned in any order.

For the BS-02 we offer two irradiation controllers, the UV-MAT and the UV-MAT Touch. Both irradiation controllers can control two spectral ranges separately and achieves a consistent dose regardless of lamp aging, contamination or temperature. The dose is measured with calibrated sensors. For this purpose, the sensor already contains an extremely precise analog-digital converter and a temperature sensor.

The memory in the sensor contains all sensor identifications and the calibration history.

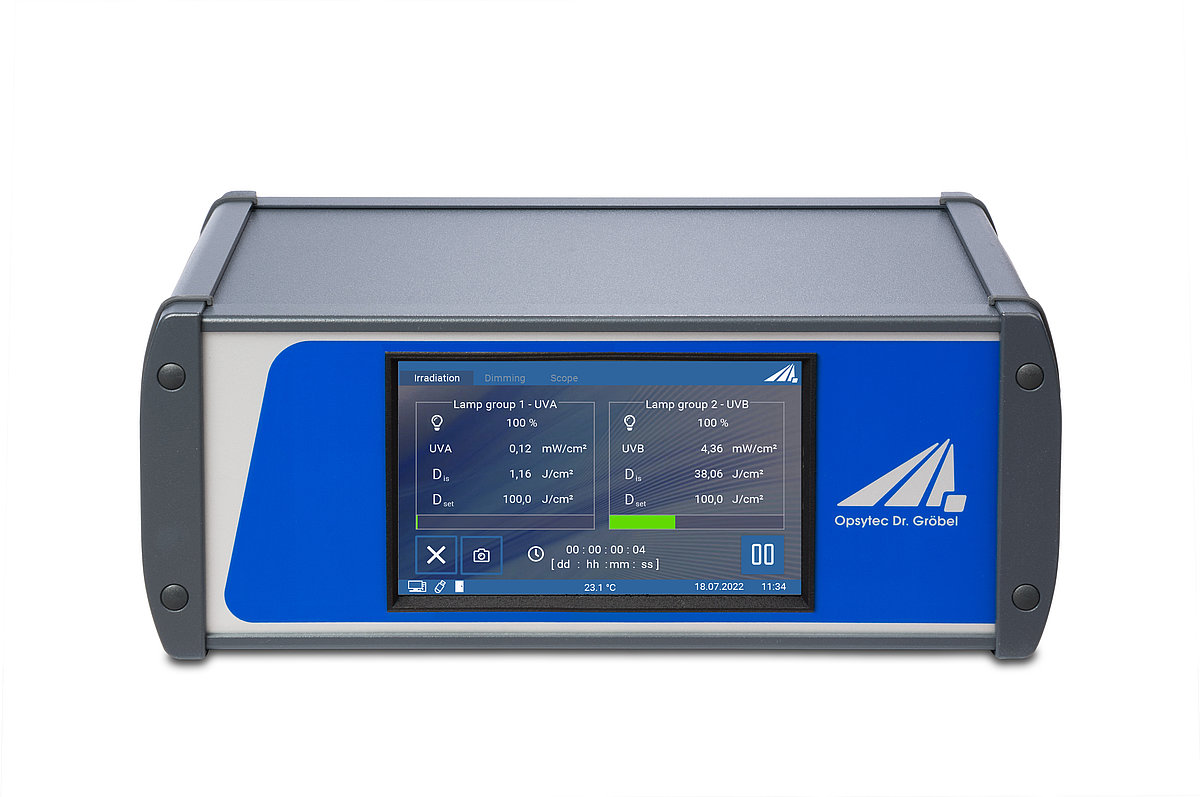

The UV-MAT Touch is operated via a high-resolution capacitive touchscreen. A Cortex ARM processor ensures longevity and update capability, allowing new functions to be installed on site. The UV-MAT Touch and the associated PC software are compatible with Windows 10/11. Numerical and graphical single and multi-channel irradiations, oscillograms and settings are clearly displayed. Parameterization is intuitive and password-protected directly on the device.

The UV-MAT Touch offers the option of being controlled via the PC, enabling multi-stage irradiations and complete documentation of the irradiation.
