帶RS485通訊接口的麵板式轉速表

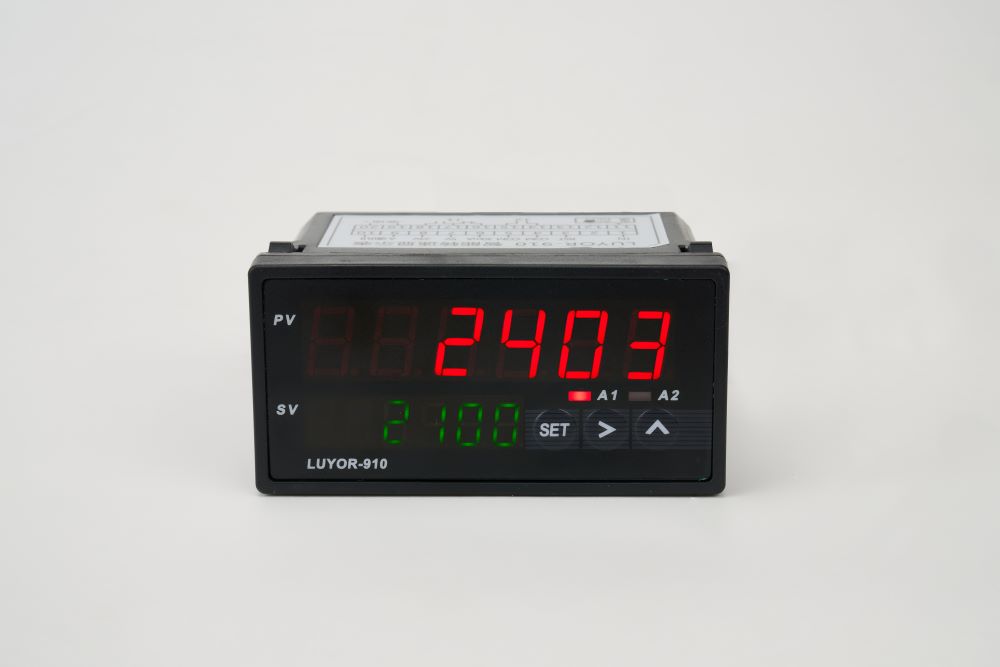

帶RS485通訊接口的麵板式轉速表LUYOR-910

麵板式轉速表LUYOR-910可選擇模擬信號輸出或0-5v電壓信號輸出以及RS485通訊。麵板式轉速顯示表LUYOR-910輸入電壓可選擇100-260v交流輸入或24v直流電源電壓。

具有可選輸出的luyor-910麵板式轉速表是一種多方麵的儀器
，與兼容的過程速度傳感器相結合
，非常適合用於速度、速率或時間監測應用。

luyor-910允許安裝在緊湊的麵板或小型外殼中。其標準輸入範圍增加了多功能性

，包括NPN、接觸和由脈衝發生器、接近傳感器、光電傳感器
、磁傳感器
、旋轉編碼器和NPN-OC晶體管等設備產生的方波或正弦波信號。luyor-910是完全可擴展的，具有四種可選模式

，使其能夠測量各種過程速度、速率和時間：轉速表、流量計、guochengshijiankuaduhejingguoshijianmoshi，gaimoshixianshishuruxinhaodedaoshu，zaihongxiangshusongjiyingyongzhonghenchangjian。zengjiadeshijiaogongnengkezidongsuofangkongzhi，tongguozhengquexietiaoxianshiqiyuchuanganqixinhaodeshurulaijianhuashezhi。moni、接觸或SSR輸出可用於額外的自動化控製。

luyor-910麵板流量計的這些增強功能使其成為速度、加工速率或時間應用選擇
，如加工操作時間、輸送機速度
、電機輸出
、體積流量
、烘箱固化經過時間等。

The luyor-910 Panel Meter Tachometer with optional outputs is a multi-faceted instrument ideally designed for speed, rate or time monitoring applications when combined with a compatible process speed sensor.

the luyor-910 allows mounting in tight panels or small enclosures. Added versatility is offered with its range of standard inputs which include NPN, contact and square or sine wave signals produced from devices such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors, rotary encoders and NPN OC transistors. The luyor-910 is fully scalable and possesses four selectable modes allowing it to measure various process speeds, rates and times: tachometer, flowmeter, process time span and elapsed time mode which displays the inverse to the input signal, common in oven conveyor applications. An added teaching function auto-scales the control which simplifies the set-up by properly coordinating the display with the input of the sensor’s signal. Analog, contact, or SSR outputs are available for additional automation control.

These enhanced features of the luyor-910 Panel Meter makes them the perfect choice for speed, process rate or time applications such as machining operation timing, conveyor speed, motor output, volumetric flowrate, elapsed time of oven curing etc.
